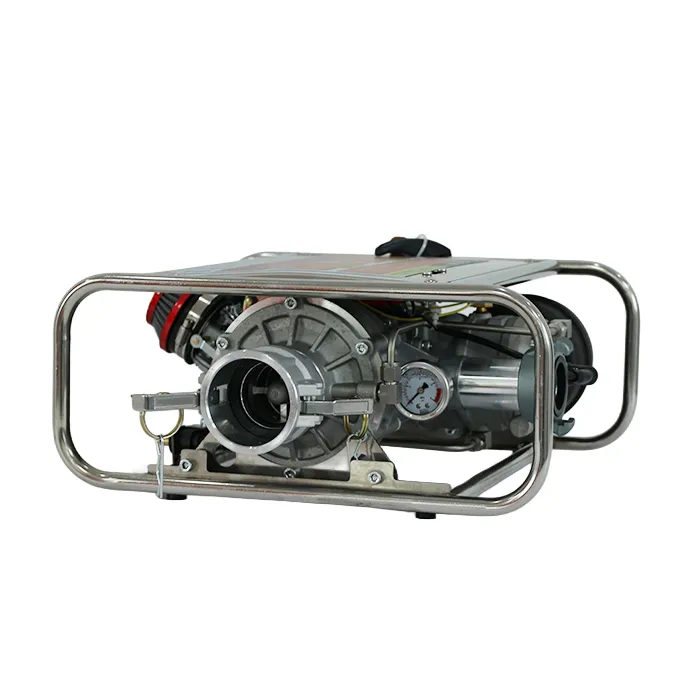

Detachable Four-stage Centrifugal Water Pump

Detachable Four-stage Centrifugal Water Pump

The detachable four-stage centrifugal water pump is suitable for various scenarios such as forestry, fire rescue, flood control and drought relief, and is the preferred equipment for emergency water supply and fire fighting. Powered by an engine, this equipment drives four corrosion-resistant impellers to rotate at high speed, using centrifugal force to create a vacuum negative pressure for rapid water intake.
Send Inquiry

Zhenjiang Linhao Forest Fire Prevention Equipment Co., Ltd. is one of the leading manufacturers and suppliers of detachable four-stage centrifugal water pump in China. If you're going to wholesale advanced detachable four-stage centrifugal water pump, welcome to get quotation and free sample from our factory. All customized products are with high quality and low price.



The detachable four-stage centrifugal water pump is suitable for various scenarios such as forestry, fire rescue, flood control and drought relief, and is the preferred equipment for emergency water supply and fire fighting. Powered by an engine, this equipment drives four corrosion-resistant impellers to rotate at high speed, using centrifugal force to create a vacuum negative pressure for rapid water intake. No pre-priming is required; priming can be completed in seconds to tens of seconds, making it highly efficient and convenient. The detachable four-stage centrifugal water pump is lightweight and durable, allowing for hand-carrying and backpack transport. Its corrosion-resistant frame can adapt to complex and harsh environments, and multiple units can be connected in series or parallel to meet high-intensity operations. Furthermore, it supports customization in multiple dimensions such as starting method and pressure, and can provide continuous power to small devices, combining practicality and flexibility to fully adapt to various high-pressure water supply and emergency needs...



Parameter Name

Specific dimensions

Dimensions

≤370mm (length) × 350mm (width) × 185mm (height) (±10mm)

Engine Power

≥11hp

Engine Displacement

≥130cc

Engine Speed

≥7500r/min

Maximum Head

≥340meters

Maximum Pressure

≥3.35Mpa

Maximum Flow Rate

≥4.9L/s

Maximum Range

≥35m

Suction Depth

≥7m

Suction Time

≤8s

Net Weight

≤13.5kg

Cold Start Time

≤7s (fuel line fully filled with fuel)

Inlet/Outlet Diameter

Water inlet (50±2)mm, water outlet (40±2)mm

Fuel Tank Capacity

≥12L

Combined Fuel Consumption

≤3.5L/h

Starting Power Supply Weight

≤500g

Starting Power Supply Start Count

≥70次(Full capacity)

Power Supply Output Voltage

5V-12V
