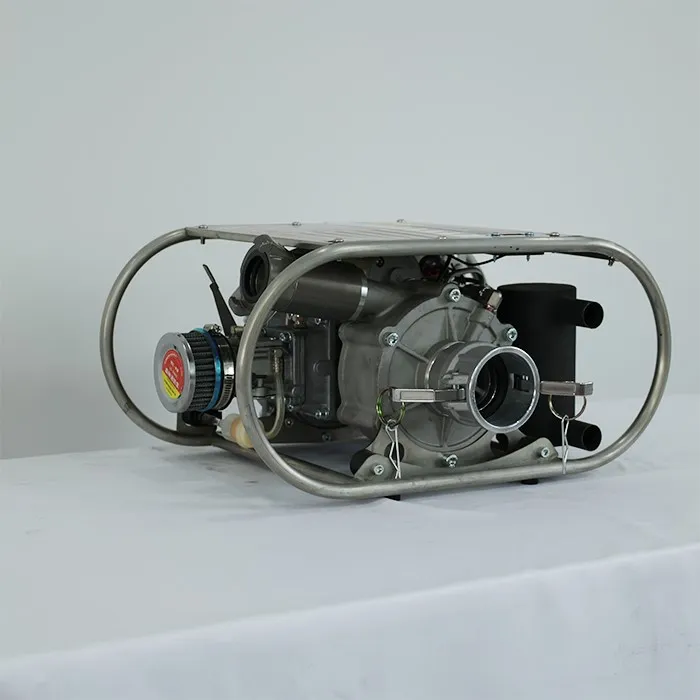

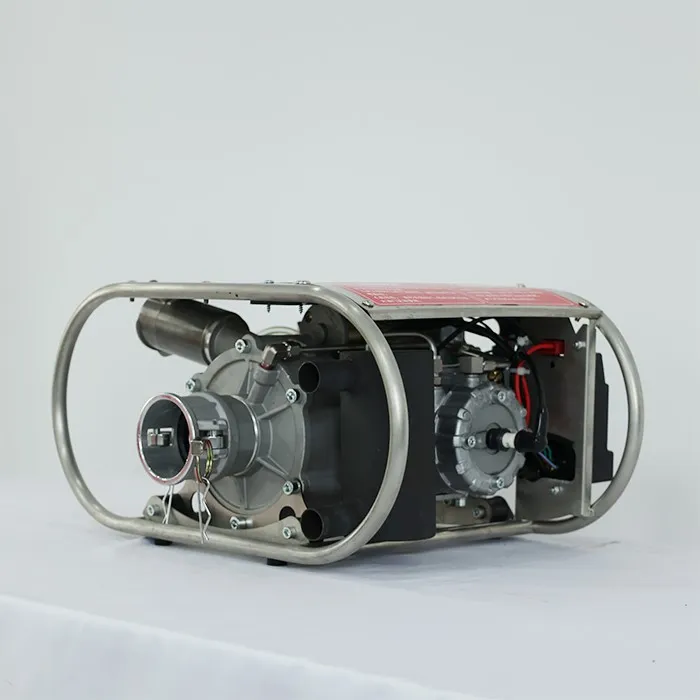

Water Pump for Fire Fighting
Zhenjiang Linhao Forest Fire Prevention Equipment Co., Ltd. is one of the leading manufacturers and suppliers of water pump for fire fighting in China. If you're going to wholesale advanced water pump for fire fighting, welcome to get quotation and free sample from our factory. All customized products are with high quality and low price.

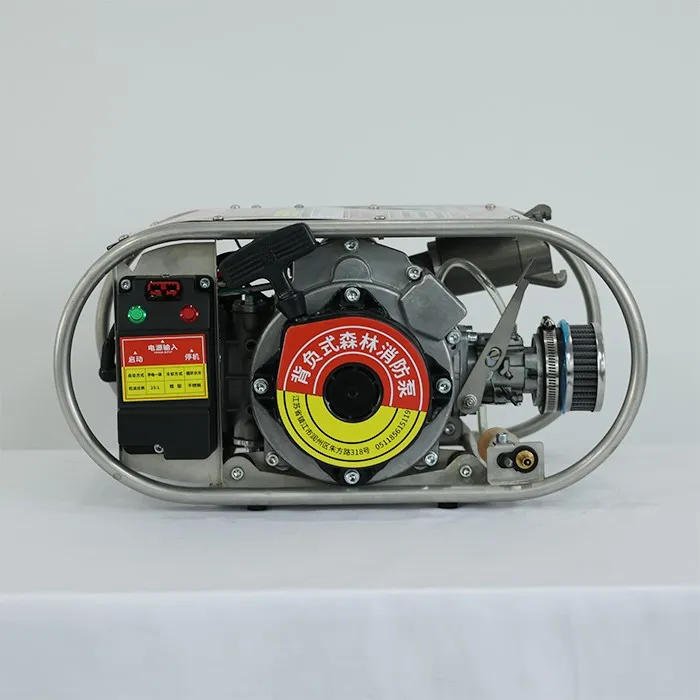

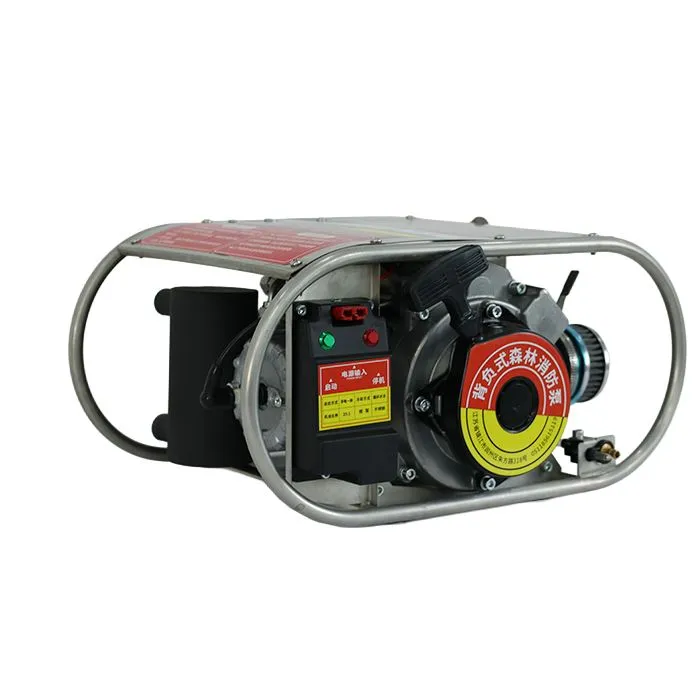

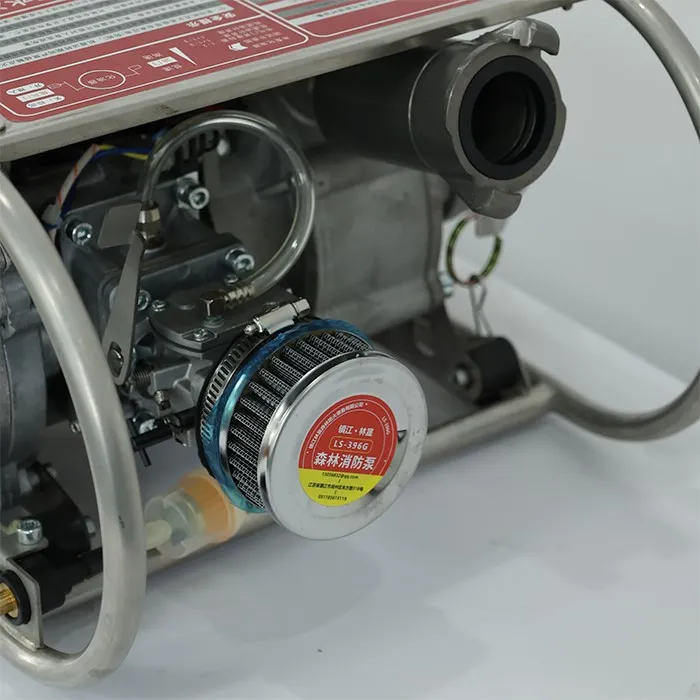

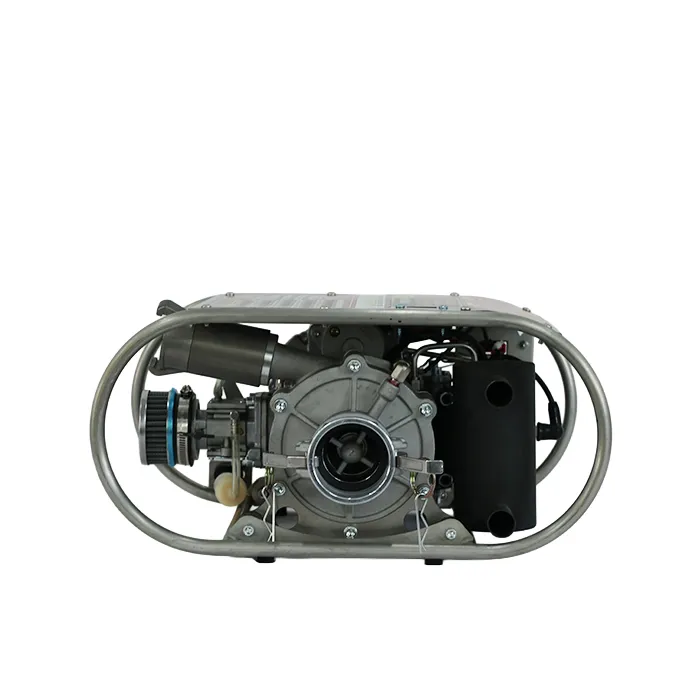

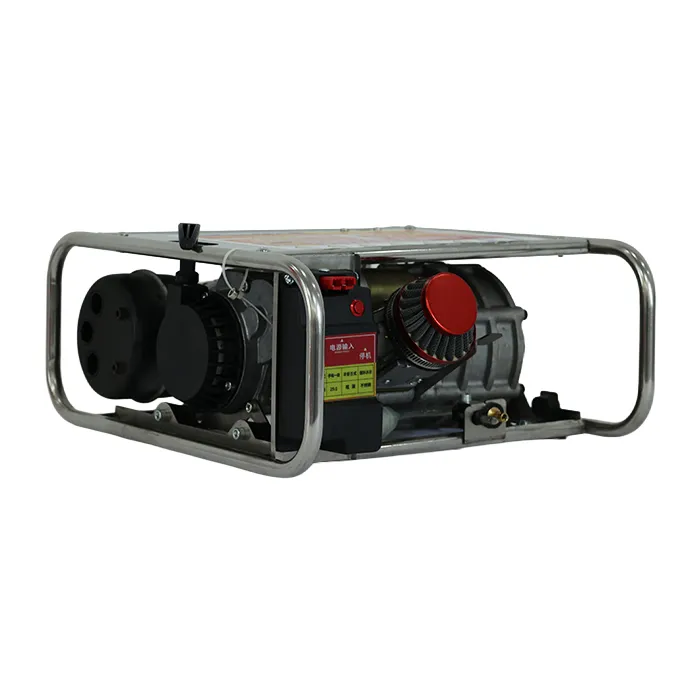

Water pump for fire fighting employs a three-stage centrifugal structure, constructed from corrosion-resistant aluminum alloy, and is driven by a dedicated hybrid-cooled engine. Its core mechanism utilizes a high-speed rotating impeller to achieve negative pressure water intake, converting kinetic energy into pressure energy, resulting in continuous high-pressure water output. This fire pump features rapid self-priming, requires no priming, is lightweight and portable (can be carried by hand or on the back), adapts to complex working conditions, and boasts powerful performance and stable operation.
Water pump for fire fighting is equipped with dual starting methods, comes with a full range of accessories, and supports multiple units operating in series or parallel. It is widely used in forest fire prevention, fire rescue, and other scenarios. Furthermore, starting methods, pressure, flow rates, and other parameters can be customized, combining practicality and flexibility, making it a reliable piece of equipment for various emergency water supply and firefighting operations.
|
Category |
Parameter Items |
Specifications |
|
Engine Parameters |
Engine Type |
Single-cylinder two-stroke engine with forced water cooling and natural air cooling, displacement ≥150cc |
|
Maximum Engine Power |
≥15HP/8500r/min |
|
|
Core Performance |
Head |
≥280meters |
|
Outlet Pressure |
≥2.80MPa |
|
|
Maximum Range |
≥37.5meters |
|
|
Maximum Suction Depth |
≥7m |
|
|
Operating Parameters |
Combined Fuel Consumption (Gasoline Engine) |
≤3.5L/h |
|
Cold Start Performance |
≤8s |
|
|
Flow Parameters (Different Operating Conditions) |
Maximum Flow Rate |
≥420L/min |
|
0.5MPa Flow Rate |
≥337L/min |
|
|
1.0MPa Flow Rate |
≥301L/min |
|
|
1.5MPa Flow Rate |
≥190L/min |
|
|
2.0MPa Flow Rate |
≥120L/min |
|
|
2.5MPa Flow Rate |
≥60L/min |
|
|
2.8MPa Flow Rate |
≥20L/min |
|
|
Structure and Others |
Water Pump Net Mass |
≤12kg(Electric starter not included) |
|
Water Pump Structure |
Three-stage centrifugal type, corrosion-resistant aluminum alloy |
|
|

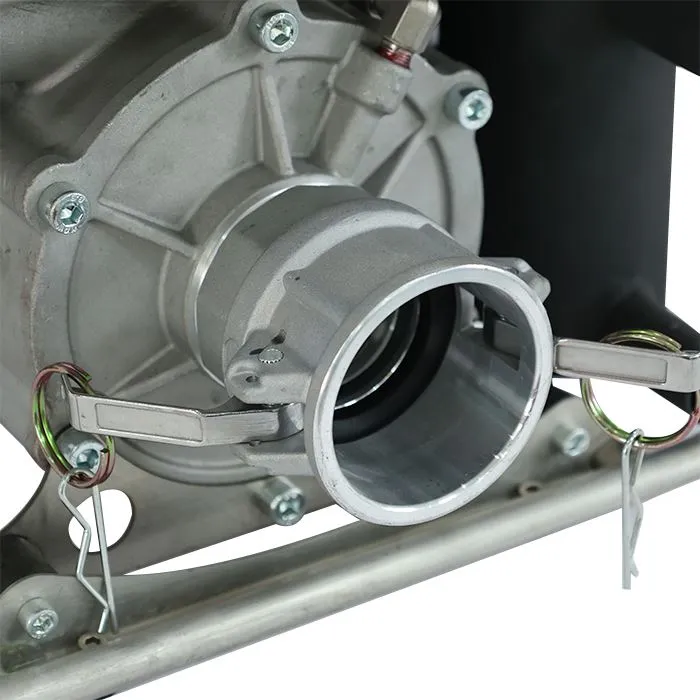

Inlet and Outlet |
Imported DN50, Export DN40 |
|
|

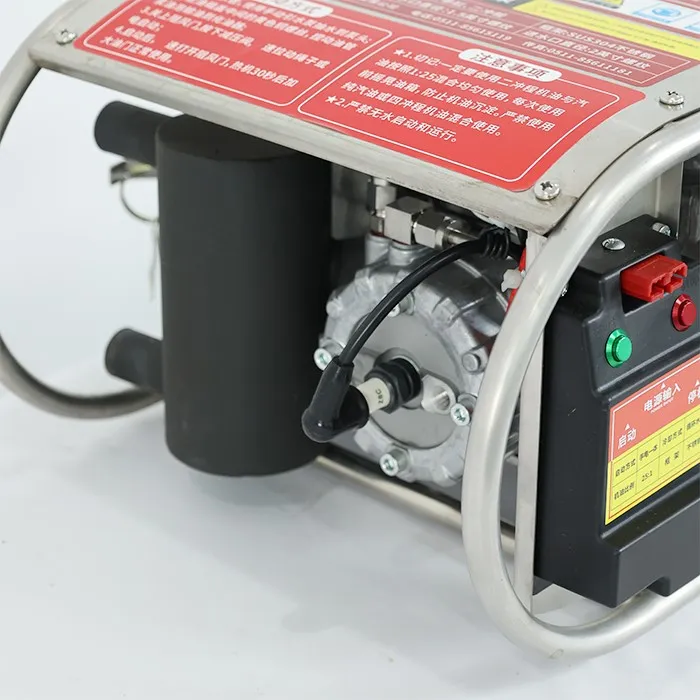

Starting Method |
Waterproof pull rope start + integrated one-button electric start |
|
|
Auxiliary Components |
Back Frame Material |
304 stainless steel welding, rust-proof treatment. |
