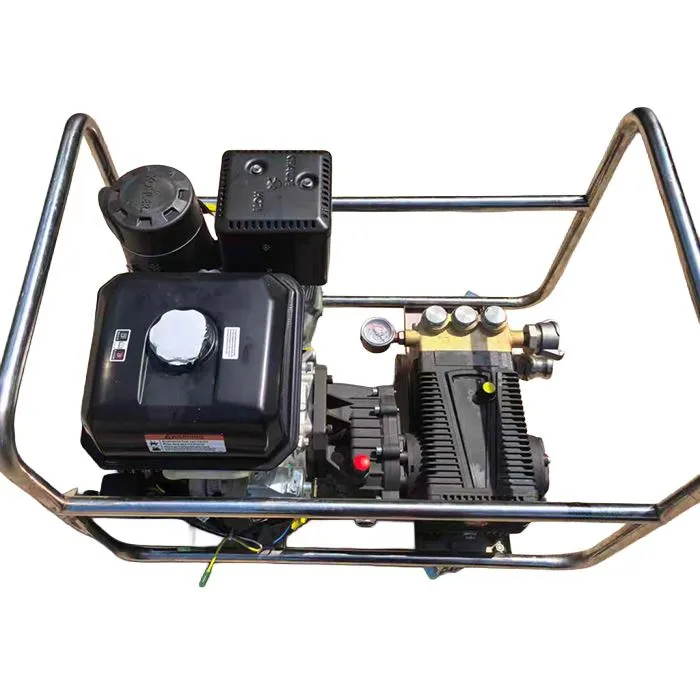

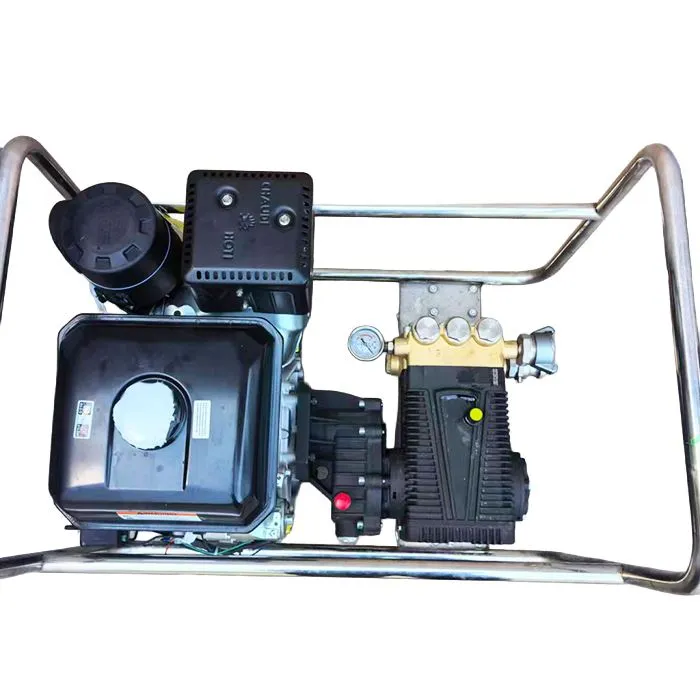

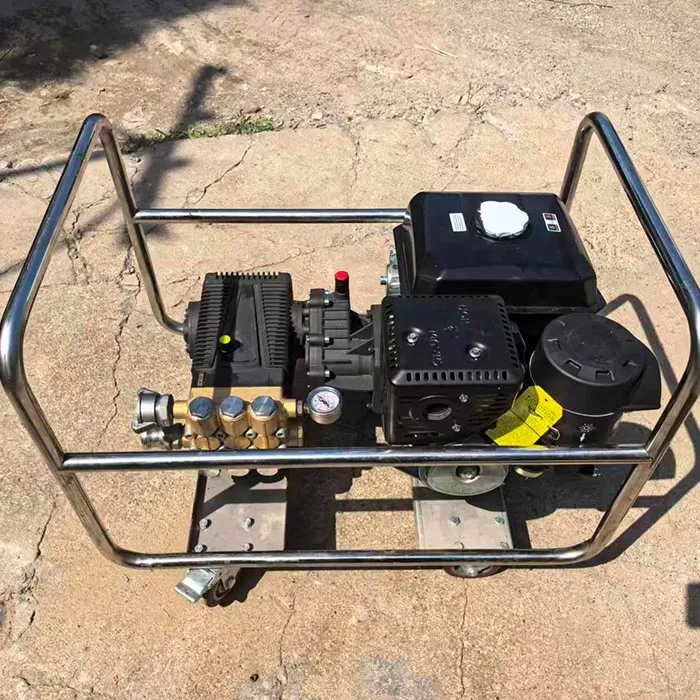

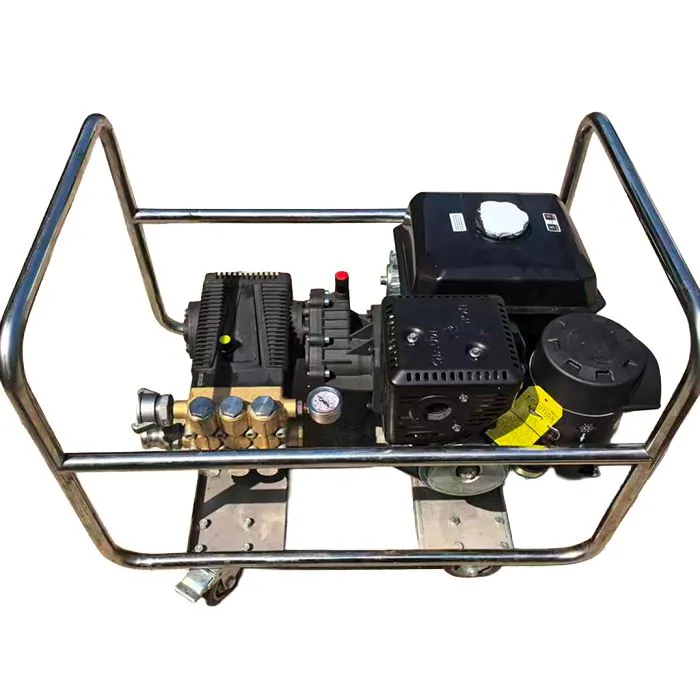

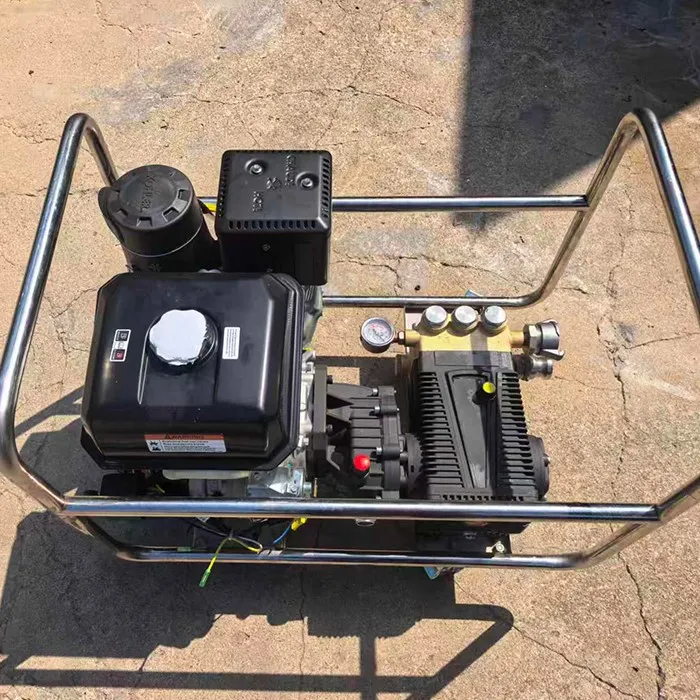

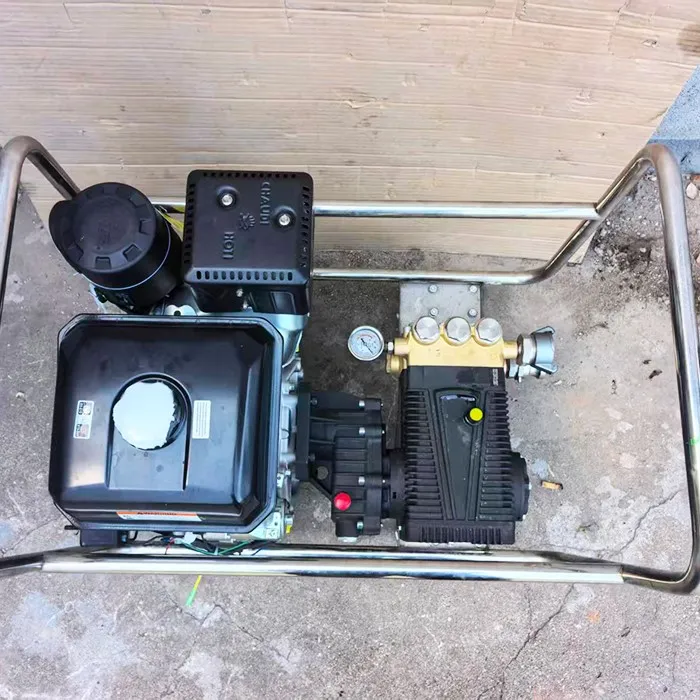

Gasoline Fire Pump
Zhenjiang Linhao Forest Fire Prevention Equipment Co., Ltd. is one of the leading manufacturers and suppliers of gasoline fire pump in China. If you're going to wholesale advanced gasoline fire pump, welcome to get quotation and free sample from our factory. All customized products are with high quality and low price.
Gasoline Fire Pump – Reliable, Durable, and Customizable
The Gasoline Fire Pump is designed for high-performance in demanding environments such as forestry, firefighting, agriculture, and construction. Powered by a gasoline engine, it utilizes a diaphragm mechanism to provide continuous, efficient water intake and discharge. This system is especially beneficial in areas with limited water sources, offering both portability and reliability.
Operation Process
- Power Drive: The gasoline engine drives the crankshaft and connecting rods, causing the diaphragm (made of rubber or PTFE) to move back and forth in a reciprocating motion.
- Suction Phase: As the diaphragm contracts, it creates negative pressure, drawing water into the pump chamber through the intake valve.
- Discharge Phase: When the diaphragm expands, it creates positive pressure, forcing water out through the discharge valve.
- Continuous Cycle: The diaphragm continues its movement, maintaining a consistent water flow by alternating the opening and closing of the intake and discharge valves.
Key Features
- Self-Priming: The pump has an impressive suction lift of up to 8-10 meters, eliminating the need for priming water.
- Debris Tolerance: Capable of handling muddy water, leaves, small stones, and wastewater without clogging.
- Leak-Free: The diaphragm isolates water, preventing leaks and wear.
- Durable & Portable: Suitable for challenging terrains, with high lift and pressure capabilities.
- Dry Run Protection: Can operate dry for short periods without damaging the pump.
Technical Specifications
|
Feature |
Specification |
|
Engine Type |
2-cylinder, 4-stroke, air-cooled |
|
Engine Power |
≥25 kW |
|
Max Pressure |
≥7.5 MPa |
|
Max Lift |
≥750 m |
|
Max Flow |
≥200 L/min |
|
Max Suction Depth |
≥7.0 m |
|
Weight |
≤160 kg |
Customizable Options
- Custom start options (manual, electric, remote, app-controlled).
- Adjustable pump pressure (0.7–6.0 MPa).
- Various engine configurations and cylinder options.
The Gasoline Fire Pump is an ideal choice for users seeking a portable, durable, and customizable pump that delivers outstanding performance in diverse and harsh conditions.
