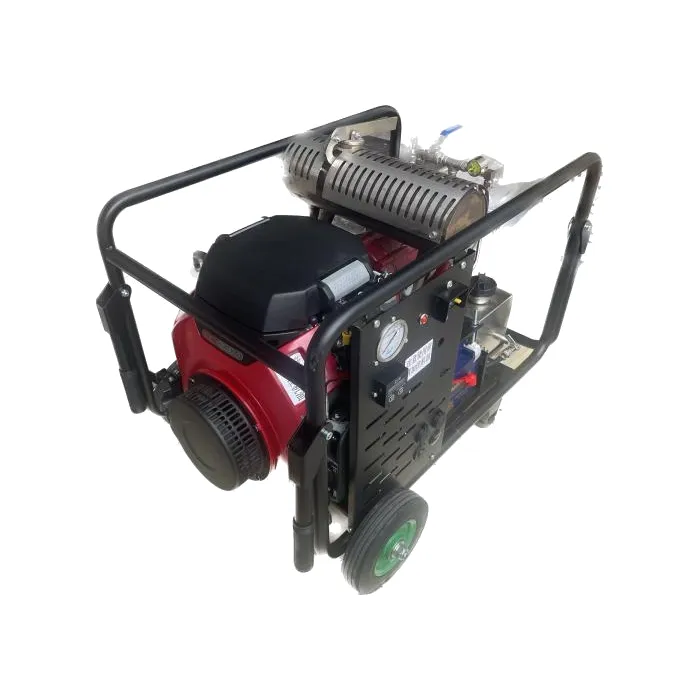

Industrial Fire Pump
Zhenjiang Linhao Forest Fire Prevention Equipment Co., Ltd. is one of the leading manufacturers and suppliers of industrial fire pump in China. If you're going to wholesale advanced industrial fire pump, welcome to get quotation and free sample from our factory. All customized products are with high quality and low price.
Industrial Fire Pump – High Performance for Challenging Environments
The Industrial Fire Pump is engineered for superior performance in firefighting, water irrigation, mining, and more. It operates with a unique diaphragm system, ensuring high suction and pressure efficiency even in rugged terrains. Powered by a reliable gasoline engine, the pump utilizes a diaphragm (made of rubber or Teflon) that expands and contracts to create the necessary pressure for continuous water intake and discharge.
Operating Principle
- Drive Mechanism: The gasoline engine drives the crankshaft and connecting rod to move the diaphragm in a reciprocating motion.
- Suction Phase (Diaphragm Shrinkage): The diaphragm shrinks outward, creating a vacuum that opens the water intake valve and pulls water into the pump chamber.
- Discharge Phase (Diaphragm Expansion): The diaphragm expands inward, creating positive pressure that opens the discharge valve and forces water out.
- Continuous Operation: The diaphragm alternates between suction and discharge, providing uninterrupted water flow.
Key Features
- Strong Self-Priming: Can achieve suction heights of up to 8–10 meters, without needing to prime the pump manually.
- Resistant to Debris: Handles mud, leaves, stones, and wastewater without clogging.
- Leak-Free Operation: The diaphragm seals ensure no leakage or wear.
- Compact and Durable: Ideal for mountainous, jungle, and complex terrains requiring high lift and pressure.
- Dry Running: Capable of running briefly without water without damage.
Specifications Table
|
Engine Specs |
Pump Specs |
Additional Features |
|
Engine Power ≥ 13 HP |
Max Pressure ≥ 10 MPa |
Customizable Start Options |
|
Single Cylinder, 4-Stroke |
Max Flow Rate ≥ 100 L/min |
Remote Control Start (Optional) |
|
Compression Ratio 8:1 |
Max Discharge Distance ≥ 25 meters |
Customizable Pressure (0.7 - 6.0 MPa) |
|
Fuel Capacity ≥ 6.5L |
Self-Priming Height ≥ 6 meters |
Customizable Cylinder Numbers (2-6) |
|
Oil Capacity ≥ 1.2L |
Horizontal & Vertical Tilt ≥ 35° |
Durable Frame with Wheels |
The Industrial Fire Pump excels in diverse applications including forestry, firefighting, flood prevention, mining, construction sites, and agriculture. It is designed to meet the most demanding conditions with customizable options for engine power, pump pressure, and operation mode, ensuring reliable and continuous water supply in emergency or industrial situations.
