Fire Sprinkler Pump
Zhenjiang Linhao Forest Fire Prevention Equipment Co., Ltd. is one of the leading manufacturers and suppliers of fire sprinkler pump in China. If you're going to wholesale advanced fire sprinkler pump, welcome to get quotation and free sample from our factory. All customized products are with high quality and low price.

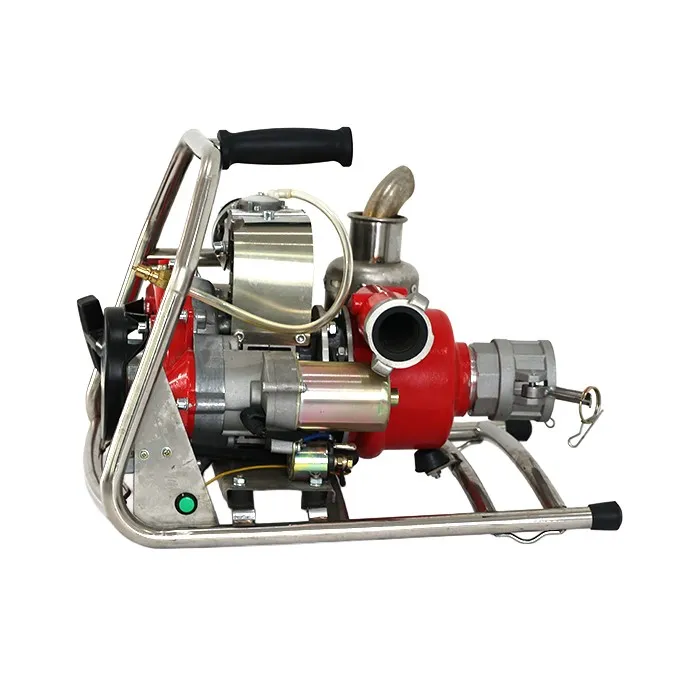

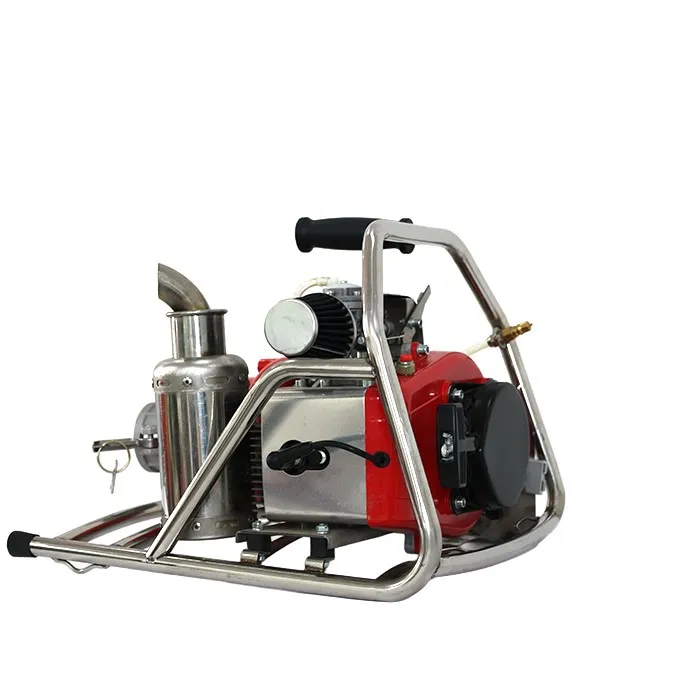

Fire Sprinkler Pump: Efficient, Versatile, and Powerful Water Pump Solution
The Fire Sprinkler Pump is designed for high performance, offering an exceptional combination of power, self-priming capability, and reliability. Powered by a gasoline engine, it utilizes a diaphragm pump mechanism for water intake and discharge, providing effective fire protection and water delivery in various challenging conditions.
Key Features and Benefits
- Self-Priming Ability: The Fire Sprinkler Pump boasts an impressive self-priming capacity with a suction depth of up to 7 meters, meaning no need for priming water-just direct water intake.
- Durability & Versatility: It can pump muddy water, sewage, small stones, leaves, and other debris without clogging, ensuring uninterrupted performance in the harshest conditions.
- Leak-Free Operation: The diaphragm pump system ensures no leakage or wear, providing long-term reliability.
- Lightweight and Portable: Suitable for use in rugged terrains such as mountains, forests, and construction sites, offering easy mobility.
- Dry-Run Capability: The pump can run dry for short periods without damage, making it adaptable to emergencies.
Specifications
|
Feature |
Specification |
|
Engine Type |
Dual-Cylinder 4-Stroke Air-Cooled |
|
Engine Power |
≥25 kW |
|
Max Pressure |
≥7.5 MPa |
|
Max Flow Rate |
≥200 L/min |
|
Max Suction Depth |
≥7.0 meters |
|
Max Discharge Distance |
≥32 meters |
|
Water Inlet Diameter |
50±2 mm |
|
Water Outlet Diameter |
40±2 mm |
|
Weight |
≤160 kg |
|
Fuel Tank Capacity |
≥24 L |
|
Cooling System |
Water-Cooled Maintenance-Free |
|
Safety Features |
Manual Pressure Relief Valve |
Customization Options
- Start Methods: Manual, Electric, Remote Control, Magnetic Induction, Water-Activated, or App-Based Start
- Pressure Settings: Adjustable from 0.7 MPa to 6.0 MPa
- Pump Head Configurations: Options available for 2-cylinder, 3-cylinder, 4-cylinder, and 6-cylinder heads
- Engine Power & Displacement: Customizable based on required specifications
This robust Fire Sprinkler Pump is ideal for forestry, forest fire prevention, rescue operations, flood control, mining, construction, and agricultural use. With customizable options to fit various operational needs, it ensures top performance in even the most demanding situations.
