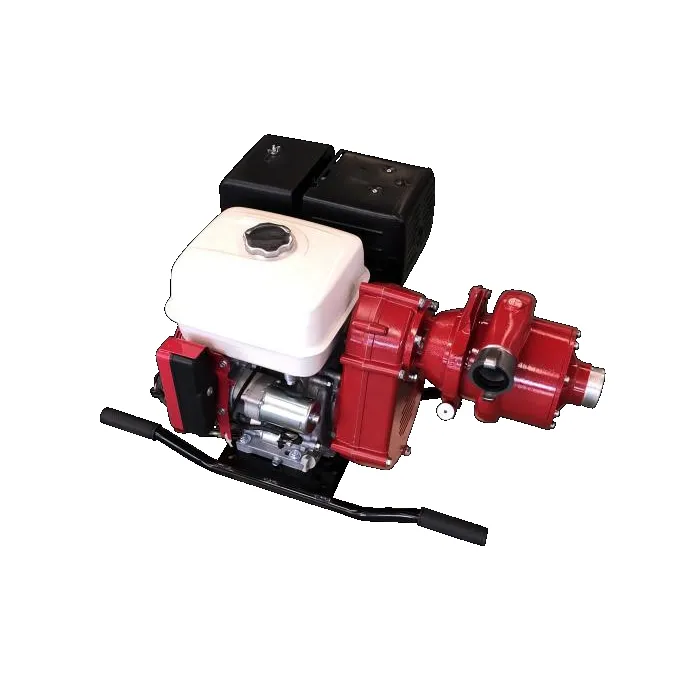

Medium-sized High-pressure Fire Pump
Zhenjiang Linhao Forest Fire Prevention Equipment Co., Ltd. is one of the leading manufacturers and suppliers of medium-sized high-pressure fire pump in China. If you're going to wholesale advanced medium-sized high-pressure fire pump, welcome to get quotation and free sample from our factory. All customized products are with high quality and low price.
Medium-Sized High-Pressure Fire Pump: High Performance & Reliability
The Medium-sized high-pressure fire pump is engineered for demanding firefighting applications, providing robust performance in high-pressure, medium-flow scenarios. This detachable, three-stage centrifugal pump meets ISO 9 and NFPA 1906 standards, designed for high pressure and versatility, including the capability to handle foam. It can achieve a maximum pressure of 45 bars (4.5 MPa) and delivers exceptional flow rates, making it an ideal choice for firefighting teams.
Key Features
- Corrosion-Resistant Design: The pump body and volute are made of durable aluminum alloy, ensuring long-lasting operation even in harsh environments.
- Convenient Maintenance: With tool-free, quick separation of the pump head and engine, maintenance is hassle-free.
- Powerful Engine: Powered by a Honda GX390 four-stroke, single-cylinder gasoline engine, offering 8.7 kW of power and 26.4 Nm of torque at 2500 RPM.
- Efficient Cooling & Fueling: Equipped with forced air cooling and a 6L fuel tank, the pump consumes only 5L of fuel per hour.
- Flexible Operation: The suction inlet (G1/4) and easy-to-remove quick clamps ensure swift setup, with manual and electric start options.
The Medium-sized high-pressure fire pump is a reliable tool for emergency response, capable of tackling demanding firefighting tasks.
Specifications
|
Parameter |
Value |
|
Pump Type |
Detachable three-stage centrifugal pump |
|
Pressure |
Max. 45 kg (4.5 MPa) |
|
Inlet |
2 inches (50mm) |
|
Outlet |
1.5 inches (38mm) |
|
Engine Power |
8.7 kW |
|
Max Torque |
26.4 Nm @ 2500 RPM |
|
Max Flow |
360 L/min |
|
Max Pressure |
24 kg (2.4 MPa) |
|
Weight |
59 kg |
|
Fuel Consumption |
5L per hour |
The Medium-sized high-pressure fire pump is a powerful tool for high-pressure firefighting tasks.
