Ultra-High Speed Vortex Jet Fire Extinguisher: Advanced Firefighting Technology



The Ultra-high speed vortex jet fire extinguisher combines cutting-edge technology to effectively combat fires with an innovative wind-water vortex jet system. It uses a turbine engine to generate super-fast airflow while simultaneously atomizing water into fine mist, creating a powerful vortex jet that can quickly extinguish flames, cool the area, and suffocate the fire. This system is ideal for fighting wildfires, forest fires, and other hard-to-reach fires.



Key Features



  • Super High-Speed Airflow: The turbine engine drives a centrifugal fan, generating wind speeds of 150-190 m/s.
  • Efficient Water Atomization: Water is rapidly atomized into fine mist by the high-speed airflow, which enhances cooling and suffocating power.
  • Portable Design: The unit is available in backpack or handheld configurations, making it highly suitable for mountainous or forested areas.
  • Rapid Fire Extinguishing: The combination of high-speed wind and fine water mist makes it more efficient than using air or water alone.



Specifications



Feature

Value

Effective Firefighting Distance

≥15 meters

Airflow Speed at Outlet

≥210 m/s

Airflow Volume

≥0.7 m³/s

Maximum Water Flow Rate

≥12.5 L/min

Maximum Vertical Water Height

≥10 meters

Water Mist Range

≥20 meters

Water Tank Capacity

≥22L

Water Tank Pressure

≥2.5 MPa

Weight (without water tank)

≤6.5 kg

Fuel

Diesel + Oil Mix

Max Engine RPM

≥160,000 rpm

Battery Type

7.4V LiPo 2500mAh / 11.1V LiPo 2200mAh

Continuous Operation Time

≥60 minutes

Material of Water Outlet

Heat-resistant 304 Stainless Steel

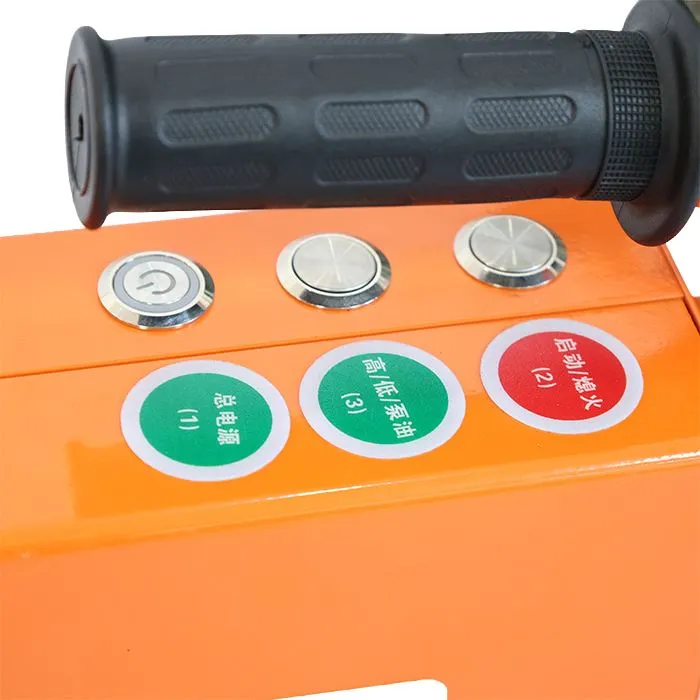

Start Method

One-click Electric Start



This Ultra-high speed vortex jet fire extinguisher offers fast and effective firefighting, featuring portability, high power, and efficiency. It is designed for rapid deployment in emergency situations and ensures long operational times without compromising performance. Whether it's wildland firefighting, rescue operations, or municipal fire control, this device provides superior protection in critical scenarios.
